Is Your Charger Really Fast? How to Measure Charging Power on Android

⚙️ Introduction: Why Measuring Charging Power Matters#

Charging speed isn't just about what the box says. You might own a 65W or even 120W charger, but your phone may only draw a fraction of that.

Android doesn't show real charging performance by default, so users often have no idea if they're actually getting what they paid for. With Battery Guru, you can monitor the actual charging power in real-time, including electric current, voltage, and calculated wattage. This data helps reveal how effective your charger and cable really are.

In this guide, we’ll answer the most common questions users have about charging power, charger specs, and how Battery Guru gives you accurate insights.

📘 Common Questions About Charging Power on Android#

❓ Q: What is maximum charging power?#

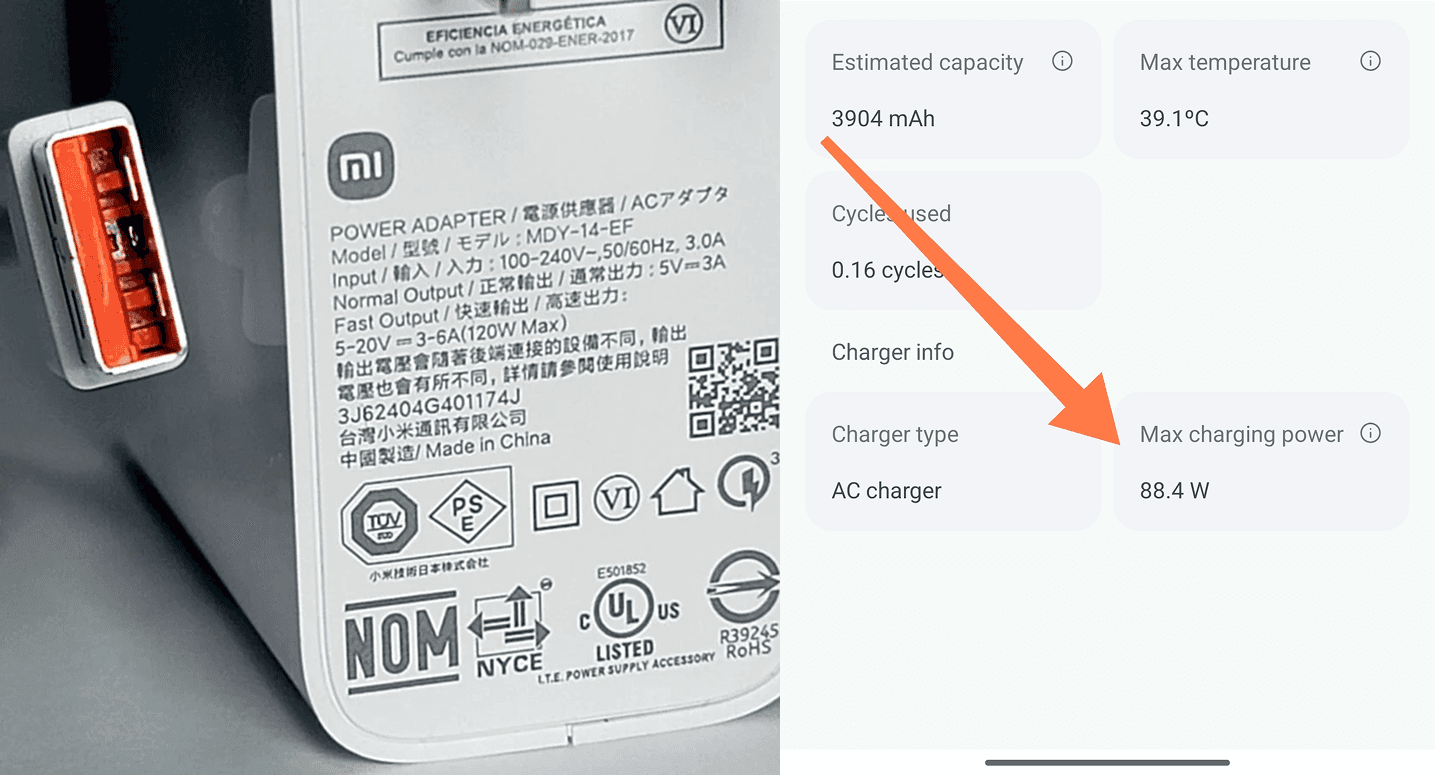

✅ A: Maximum charging power refers to the highest rate at which your device can receive electrical energy from the charger, measured in Watts (W). It's calculated by multiplying voltage (V) and electric current (A), the two key components of electrical power.

While a charger might be labeled as 120W, that doesn't mean your phone will always pull 120W from it. In fact, most devices only draw maximum power briefly, and only when conditions are ideal, such as a low battery level, optimal temperature range, screen turned off, and a compatible high-quality charger and cable.

Phones are designed with built-in safeguards to preserve battery health, meaning they often throttle charging speeds automatically. As a result, actual power intake is lower most of the time. Battery Guru allows you to observe this in real-time, so you can see exactly how much power your device is drawing and when those peak charging moments occur.

❓ Q: Why is my phone not charging at 120W, as advertised?#

✅ A: There are several reasons why real charging power is lower than advertised:

• Battery level: Maximum power is usually achieved when your battery is between 15–40%. As the charge increases, power output naturally tapers off to prevent overheating and wear.
• Temperature: If your battery is too hot or too cold, the phone will reduce charging speed for safety
• Screen on: Super fast charging often only activates when the screen is off.
• Battery protection mechanisms: Phones manage power draw dynamically to extend battery life.
• Cable or charger limitations: Low-quality or mismatched accessories can prevent high-speed charging.

💡 Tip: For highest speed, use the original cable + charger, plug it in at around 20%, and turn the screen off.

🔋 Charger vs. Battery - Key Terms Explained#

⚡ Charger Voltage (V)#

This is the voltage output of your charging adapter, the electrical pressure that pushes current into your device. Fast chargers typically provide a range of voltages, from 5V (standard charging) up to 9V, 12V, 15V, or even 20V depending on the supported fast charging protocol (e.g., USB Power Delivery, Qualcomm Quick Charge).

The voltage level dynamically adjusts during a charge cycle, depending on the phone's internal controller and the stage of charging. Early in the session, the voltage may be higher to enable faster energy transfer, while later it may reduce for safety and longevity. It's important to note that the battery itself doesn't operate at these high voltages, instead, your phone converts the incoming voltage to suit the battery's needs internally.

Higher voltage allows for higher wattage (more power) without increasing current too much, which helps reduce heat and maintain efficiency during fast charging.

⚡ Charger Current (A)#

This is the maximum current your charger is capable of delivering, such as 2A, 3A, or even 6A depending on its specifications and supported charging protocols. However, this is not the amount that directly reaches your battery.

Your phone’s charging controller plays a key role in regulating how much of that current is actually used. It adjusts the incoming current based on the phone’s temperature, battery level, and health conditions. For example, even if your charger is rated for 6A, the controller might only allow 2A if the battery is already more than 80% charged or running hot.

Moreover, some advanced fast chargers use dynamic current profiles, where the charging speed changes in stages, initially high and then gradually reducing. This protects the battery from stress while still offering quick top-ups early in the cycle.

🔋 Battery Voltage (V)#

This is the actual voltage of your phone’s battery. For single-cell batteries, it typically ranges from 3.6V when nearly empty to around 4.4V when fully charged.

Some modern smartphones use dual-cell battery configurations to support faster charging. In such cases, each cell charges in parallel, and Battery Guru reports the combined voltage or one of the active cells, depending on how the phone's API exposes the data.

This setup helps reduce heat and allows higher current throughput without overloading a single cell. However, the reported voltage values may differ slightly compared to a traditional single-cell battery.

🔌 Electric Current in Android#

Electric current, measured in milliamperes (mA), represents the flow of electric charge into the battery. When charging, this current tells you how much energy is being delivered to the battery at any given moment, it fluctuates based on temperature, battery level, and other system behavior.

Battery Guru reads current using Android’s BatteryManager API, which provides the instant current flowing into the battery, not the current being delivered by the charger itself. This is important because the actual usable current is affected by the device’s internal power conversion system.

🔧 What is a Charging Controller?#

Your device includes a charging controller chip that plays a central role in managing how power is delivered to your battery. It's responsible for intelligently regulating the charging process to ensure safety, efficiency, and battery health.

Here’s what it does:

• Converts incoming charger voltage to match the battery's required voltage.
• Limits current flow to prevent overloading or overheating the battery.
• Dynamically adjusts the charging rate based on battery level, fast when low, slower as it approaches full.
• Monitors battery and device temperature and slows or pauses charging when necessary.
• Communicates with the charger using protocols like USB-PD or Quick Charge to negotiate optimal power delivery.

This system ensures that your phone charges as quickly as possible without risking damage. Because Battery Guru reads current and power after this regulation takes place, it reflects the real charging conditions, not just what the charger sends, but what actually makes it into your battery.

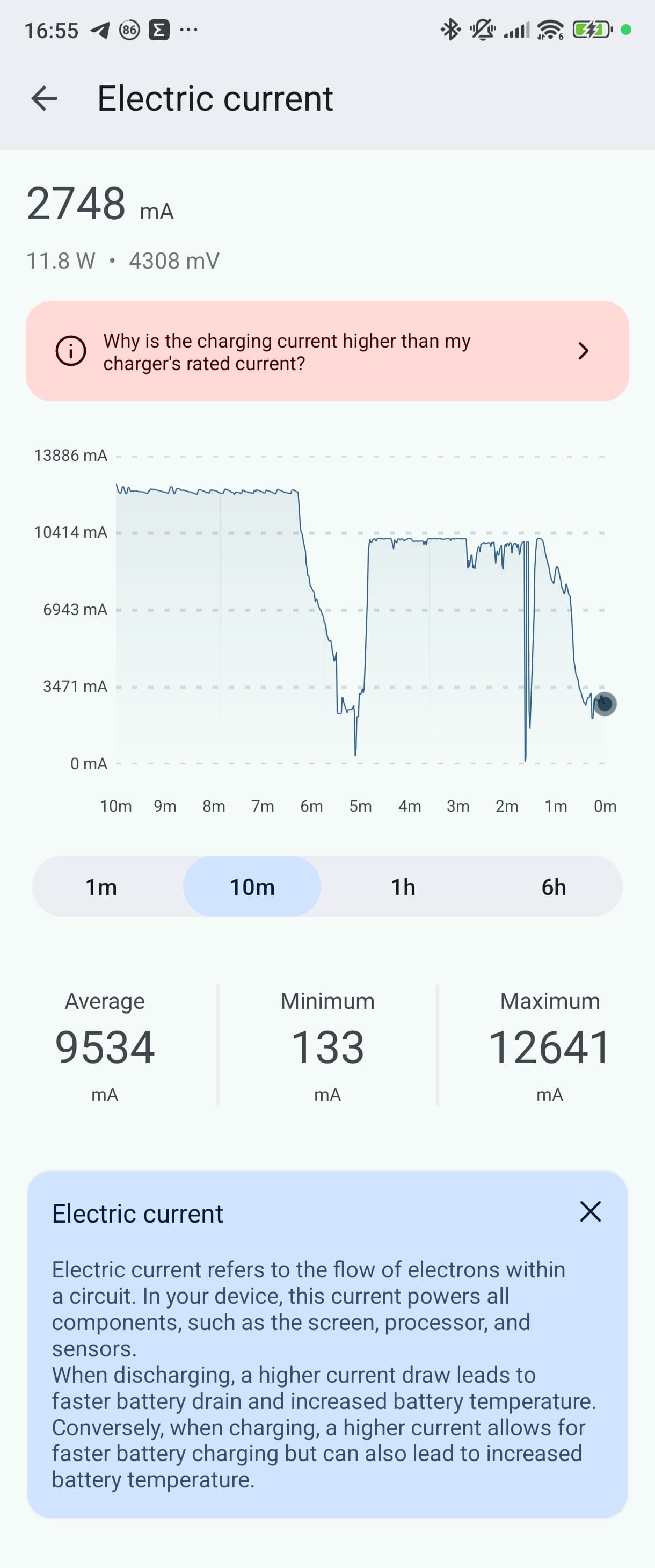

📈 Electric Current Graph in Battery Guru#

Battery Guru shows a real-time graph of electric current, giving users a visual representation of how power flows into the battery throughout the charging session. This graph can tell you a lot about the behavior and efficiency of your charger and device.

Here’s what you can observe:

• ⚡ Initial spike at connection: Most chargers deliver a surge of current when first connected, initiating a rapid charge.
• 🟢 Stable plateau during optimal charging: A flat, consistent current indicates steady and efficient charging. This is often seen between 20–60% battery level.
• 🔻 Drop-off as battery approaches 100%: Charging slows down significantly after ~80% to protect the battery, reflected by a downward trend in the graph.
• ⚠️ Fluctuations due to temperature or power limitations: Sudden drops or spikes may indicate overheating, cable issues, or the device actively managing heat.

💡 Use this graph to compare how different chargers behave, determine whether fast charging is really working, or identify inefficient power delivery. It’s also helpful for spotting inconsistent cables or chargers that underperform over time.

✅ Best Practices for Fast Charging#

To get the most out of your charger and ensure safe, efficient energy transfer while protecting your battery, follow these expert-backed tips:

• 🔋 Aim for the lower battery range (15–40%) when possible: This is where most phones allow maximum charging power before throttling begins. While it's not practical to stop at 40%, plugging in during this range can help you observe peak performance and get the most from fast-charging technologies.
• 📴 Keep screen off while charging: Using your device during charging can significantly reduce the charging speed. Super fast modes often require the display to be completely off.
• 🌡️ Avoid charging in hot environments: Charging generates heat, adding external warmth from sun or heat sources increases battery stress and reduces speed.
• 🧊 Don’t charge right after heavy use (like gaming): Let your device cool down for a few minutes before plugging it in. A hot battery won’t charge efficiently and may even temporarily slow to protect itself.
• 🔌 Use original or high-quality cables and chargers: Mismatched or poor-quality accessories can throttle current, fluctuate voltage, and lead to inconsistent charging performance.
• 😌 Let the phone rest during charging: Avoid demanding tasks like gaming, streaming, or GPS use during charging, they raise power consumption, temperature, and charging time.

Following these habits not only shortens charging time but also helps preserve battery health in the long run.

🔚 Final Thoughts: Stop Guessing, Start Measuring#

Fast charging isn’t just about flashy numbers like "120W" on a box, it’s about how your charger, cable, and device behave in the real world. Many variables affect charging speed, including battery health, temperature, usage during charging, and accessory quality.

Battery Guru takes the guesswork out by offering precise, live data about your device’s actual charging performance. With it, you can:

• Measure true power in Watts (W), calculated from real-time voltage × current
• Track current and voltage live throughout the charging session
• Monitor how temperature affects charging efficiency and speed
• Spot underperforming or fake chargers and cables
• Compare charging sessions over time to detect patterns or issues

Whether you're optimizing for speed, diagnosing issues, or just curious about how your tech works, Battery Guru empowers you with actionable insights that go far beyond what your phone shows by default.
